5G Cluster
5G Cluster 3 Traffic Lights
5G Cluster

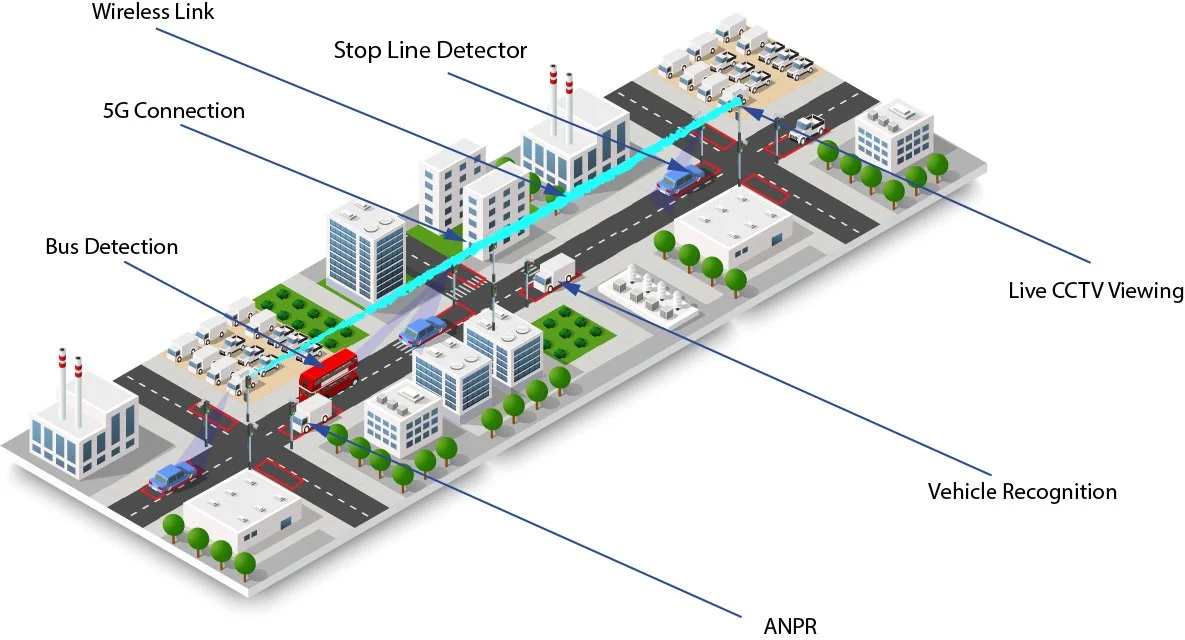

The Basic 5G cluster allows up to 5 traffic lights or CCTV cameras to be connected and connected to a High Reliability 5G backhaul. With the optional addition of cameras and AI, a comprehensive solution for Traffic Management can be provided at a low cost using Mesh5G technology.
More than 10,000 traffic lights and CCTV cameras have been connected in this way in a city-wide mesh. The reliability of 5G communications, with its 4G fallback, and the provision of unlimited data SIMs make this an attractive, low-cost way to connect your on-street equipment.
At a later date, clusters can be connected to provide larger, resilient networks. Every Traffic Light and CCTV camera can have additional devices added at the cost of the equipment only, and these can be installed in 15 minutes.
Contact us for more information on 01883 621100. or sales@nowwireless.com
Communications 3 Nodes: 5G, 4 Antennas and 3 Cabinet Routers
Expansion: Can be expanded to 5 locations
Mesh Option: Clusters can be joined
Speed: Gigabit Frequency: 5GHz, 60GHz option
Range: 4Km, 7Km option Fibre: Fibre can replace 5G
SIM: Either your own SIM or a full range of 1-year and 3-year
Data: Either Unlimited ir fixed amount
Devices: AQ, Bluetooth, Cameras, AI, Detectors
5G AI Cluster
AI Upgrade to a 5G Cluster
An AI enables the cluster to create Stop Line Detection and vehicle classification capabilities by adding cameras, one AI and eight Cameras with an 8-port I/O module that connects via the road loop interface.
The AI can be used to replace overhead detectors, as physical loops fail progressively, by installing a camera at that point. Cameras will generally cover four lanes. Cameras can be used for Cycles, Pedestrians, Vehicles and Buses or other significant vehicles, triggering loops as necessary for all classes. Devices can be added to a Cluster at any time.
Cameras: 8 Cameras are included in the kit; more cameras can be acquired
AI: One AI is included, supporting up to 8 cameras, depending AI model used
AI Expansion: Additional AI can be plugged in as required
Functions: Stop Line Detection, Classification, Counting, turn analysis, Queue detection.
View Angle: Four Lanes Both Directions
Senseview: Complete Sensview Integration and UTMC interface API
API for UTMC: supported by Swarco and Yunex
Detection Interface: UTC Loop or Ethernet
ANPR: is available and requires a different camera type (Zoomed)
ANPR Extended Functions: Can provide Detailed vehicle information, tracking, and Journey Time
Pedestrian & Cyclists: Detect Pedestrian and Cyclists
CCTV: Full Live viewing of the camera on Sensview
Storage Option: Allows replay of previous history - 256GByte SD Card
